Objective: To identify suspicious network traffic using protocol analysis and implement multi-layered blocking mechanisms to secure a local environment.

1. The Vulnerability: Malicious External Communication

During live monitoring of network traffic, I identified several suspicious domains, such as googleagmanger.com and aoneroom.com, which exhibited characteristics of Command-and-Control (C2) infrastructure. These domains utilized CDN IP rotation to evade traditional security controls and performed frequent DNS resolution attempts, suggesting the presence of adware, tracking scripts, or persistent backdoors.

2. Technical Execution: Protocol Interrogation

I utilized Wireshark to perform granular packet inspection, isolating abnormal DNS queries and tracking the CNAME chaining used by attackers to obscure their true server locations.

ComponentValuePurpose
Analysis ToolWiresharkReal-time packet capture and DNS log inspection.
Mitigation 1Windows Hosts FileSystem-level redirection of malicious domains to 127.0.0.1.
Mitigation 2Batch ScriptingAutomation of the blocking process for speed and scalability.
Mitigation 3Router FilteringNetwork-wide protection via URL keyword filtering.

3. Execution Workflow

  1. Traffic Baselining: Monitored legitimate traffic (e.g., Google, Firebase) to establish a behavioral baseline for routine, secure communications.
  2. Threat Identification: Flagged domains mimicking legitimate services (typosquatting) and those showing repeated queries to unknown subdomains.
  3. Local Nullification: Manually updated the Windows hosts file to redirect traffic from identified malicious domains to the local loopback address.
  4. Automation & Scalability: Developed a reusable batch script to automate the host file updates, reducing manual error and deployment time.
  5. Network-Wide Enforcement: Configured the MTN 4G Router firewall to block these keywords at the gateway, protecting non-Windows devices like mobile phones and IoT hardware.

4. Key Commands

:: Automated domain blocking script snippet
@echo off
set hostspath=%SystemRoot%\System32\drivers\etc\hosts
echo 127.0.0.1 googleagmanger.com>> %hostspath%
echo 127.0.0.1 aoneroom.com>> %hostspath%

5. Evidence of Work

RESOURCES_NODE_01
Discovery
Caption: Identification of suspicious DNS queries and rotating CDN IPs in Wireshark logs.

RESOURCES_NODE_01
Discovery

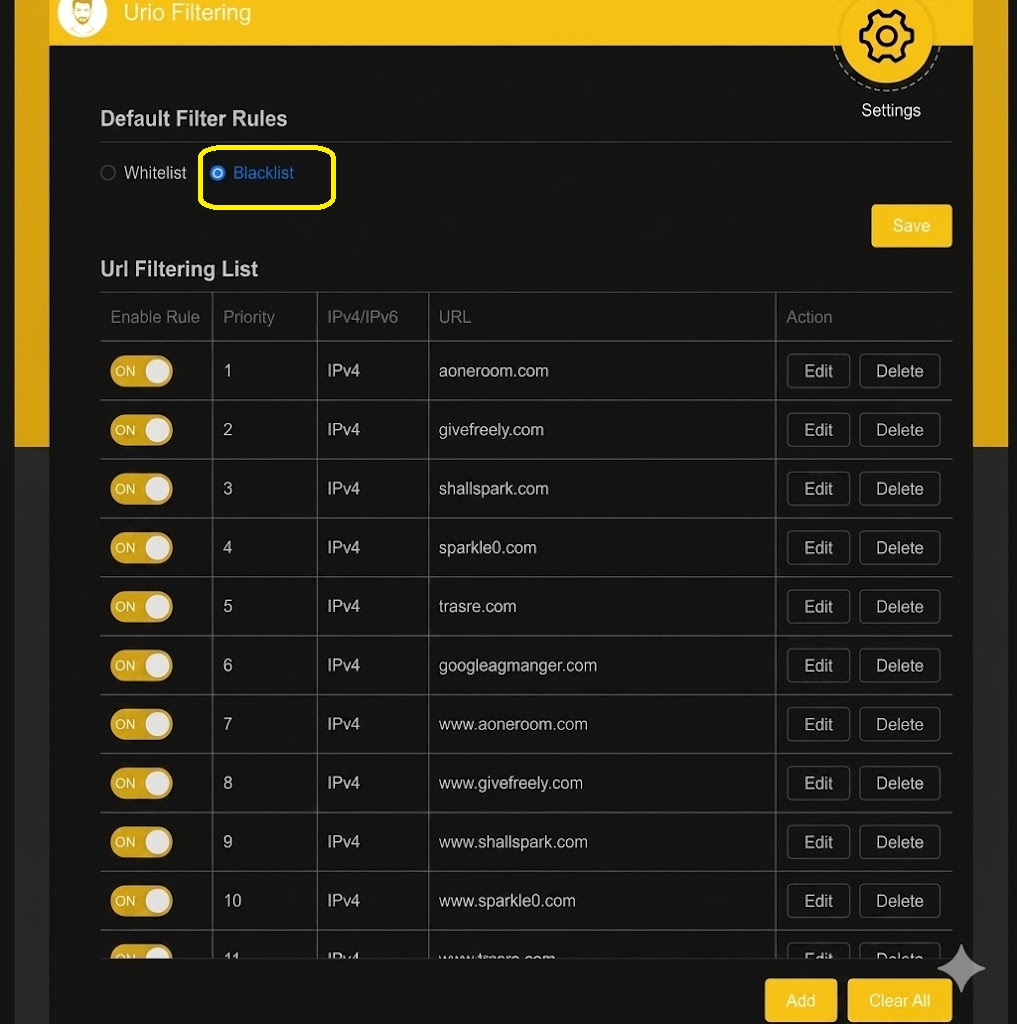

Caption: Centralized network-wide blocking of malicious domains at the router boundary to secure all connected devices.

6. Professional Impact

This project demonstrates a Defense-in-Depth mindset. By combining local system-level modifications with centralized network-wide filtering, I ensured that no single point of failure would compromise the environment. I successfully neutralized communication channels for potential data exfiltration and confirmed the effectiveness of the remediation through continuous monitoring.
